ExTe TU

Highest transport safety

The TU tensioner has automatic retensioning and unlimited tension length. The TU tensioner (TU stands for Tension Unlimited) has a pulling force of up to 1000 kg, which is adjusted according to the requirements of each market.

Patent design AU 352618, CA 153816, EU 002245019-0001, GB 9002245019-0001, NZ 418231, US D756733.

ExTe TU

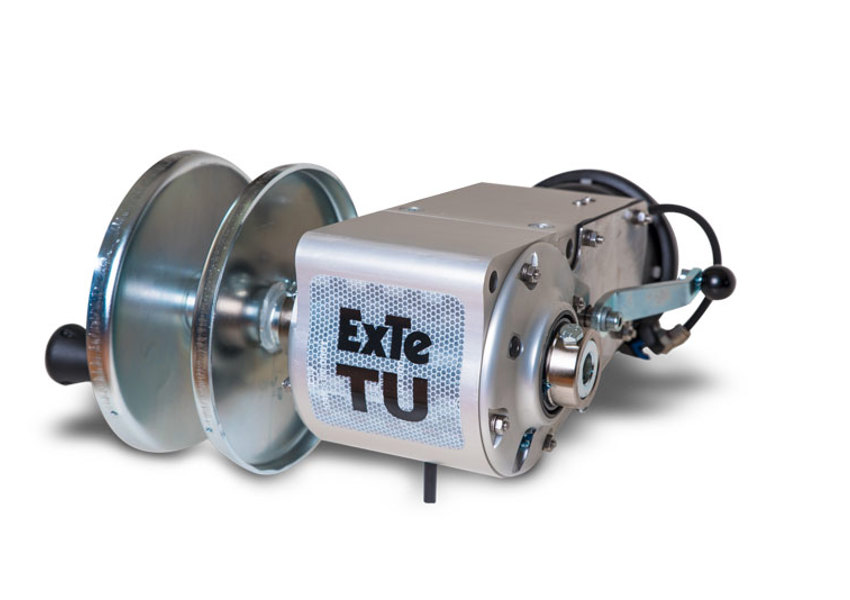

A compact automatic tensioner in a new, modern design

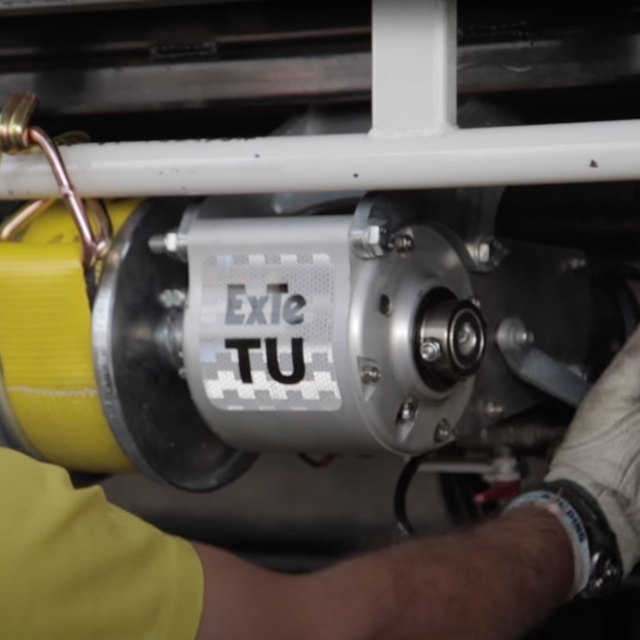

The TU tensioner features simple and reliable mechanics and can be mounted on a bunk or frame. The tensioner is built with few moving parts to increase reliability and has a completely new valve mechanism. It is easy to replace wear parts and requires minimal maintenance.

Its symmetrical design (right/left) allows for mounting the belt drum and release lever on either side depending on what suits best. Belt drums are available for different needs and are easy to replace. New additions include a drum for short-linked chains and a small drum with width to wind up 10m belts. The tensioner weighs 11 kg without drum and mount.

Patent design AU 352618, CA 153816, EU 002245019-0001, GB 9002245019-0001, NZ 418231, US D756733.

More information

Tensioner

Attachment

Accessories

Service messages

Lubrication instruction TU, AN00006 Rev A

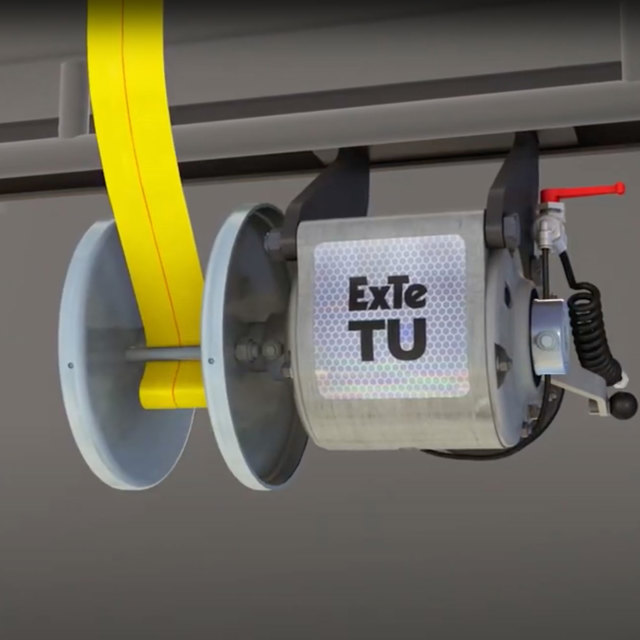

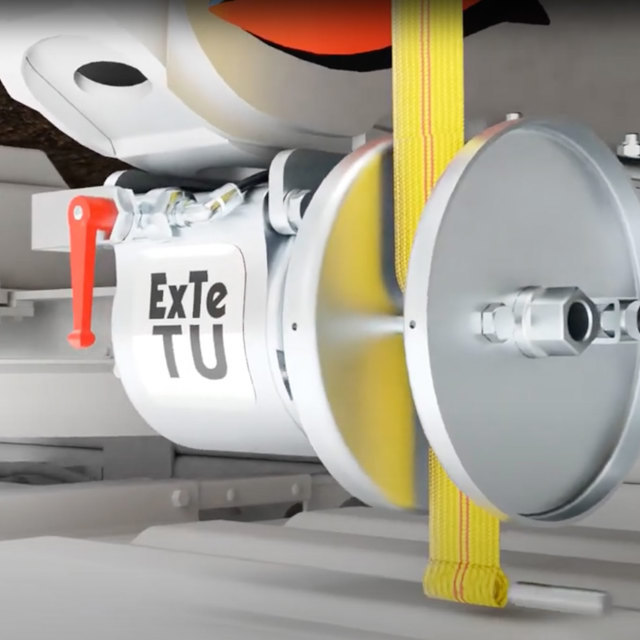

ExTe TU TU for timber transport (animation)

ExTe TU TU for flatbed transports (animation)

ExTe TU

SECURE LOADS FOR ALL HEAVY TRANSPORTS

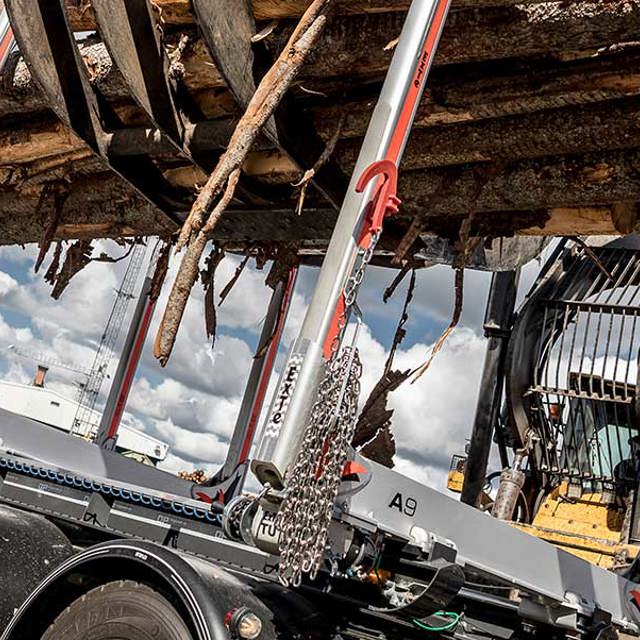

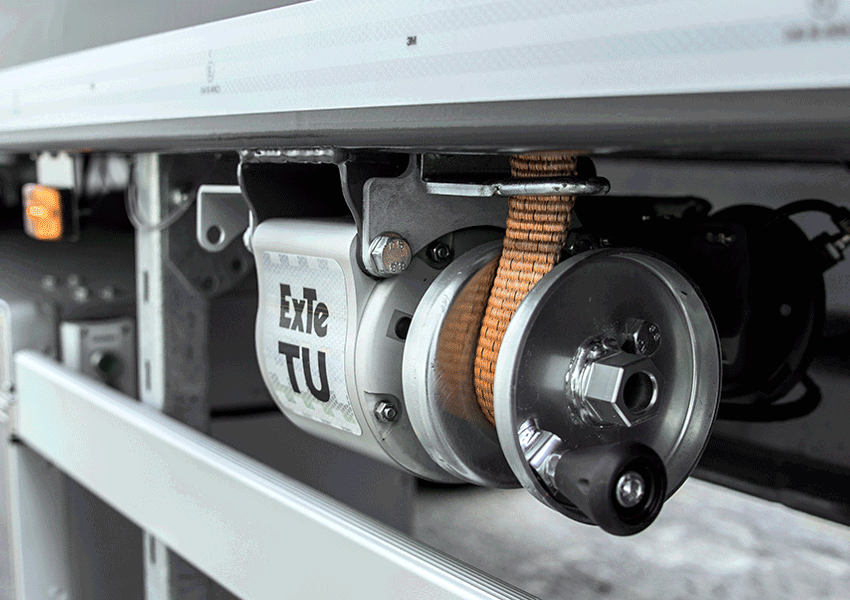

The TU tensioner has been developed to secure loads for all heavy transports, whether it is timber or other goods. An air-controlled release of the mechanism in the tensioner is available as an accessory. With this, the release can be done with the push of a button from the truck cab. This broadens the range of applications, such as when the tensioner is mounted under a platform/box where accessibility is not the best. The tensioner can also be tightened manually if needed.
