Our S Series was developed to provide space for even more wood in every load. Both bolsters and stakes are constructed in high-strength steel. The most unique thing about the S Series timber bunks is the large loading area.
Within the framework of our uniquely broad range, we now offer two a completely new and flexible 10 and 7-tonne steel bunks within the S series.

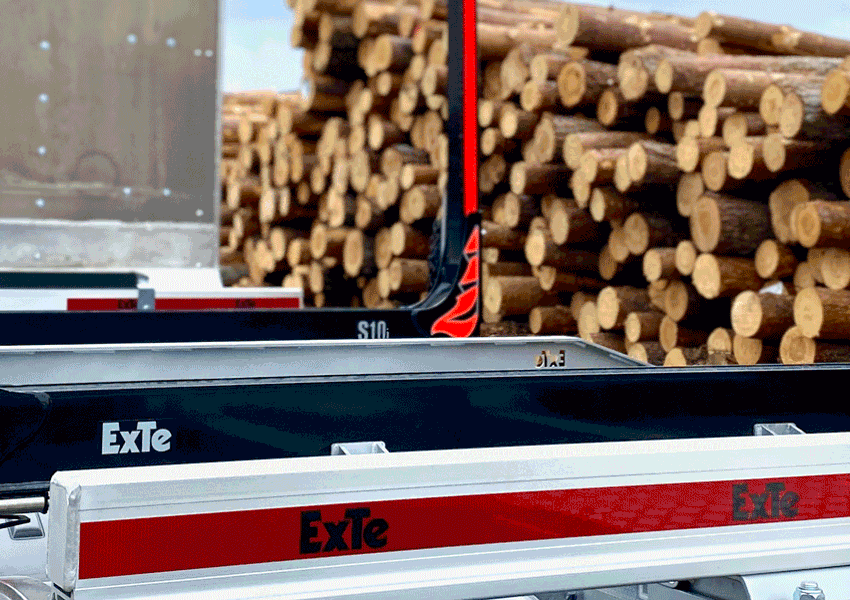

Like all S Series timberbunks, the bolsters and stakes for the S10i and S7i are made of high-strength steel. The major difference is that the latest Si timberbunks have a wider and lower bolster. This design accommodates the integrated tensioner and allows for more timber in each load.
The S-bunks are available in the following performance levels:
S7i – Maximum load per bunk: 7 tons
S10i – Maximum load per bunk: 10 tons

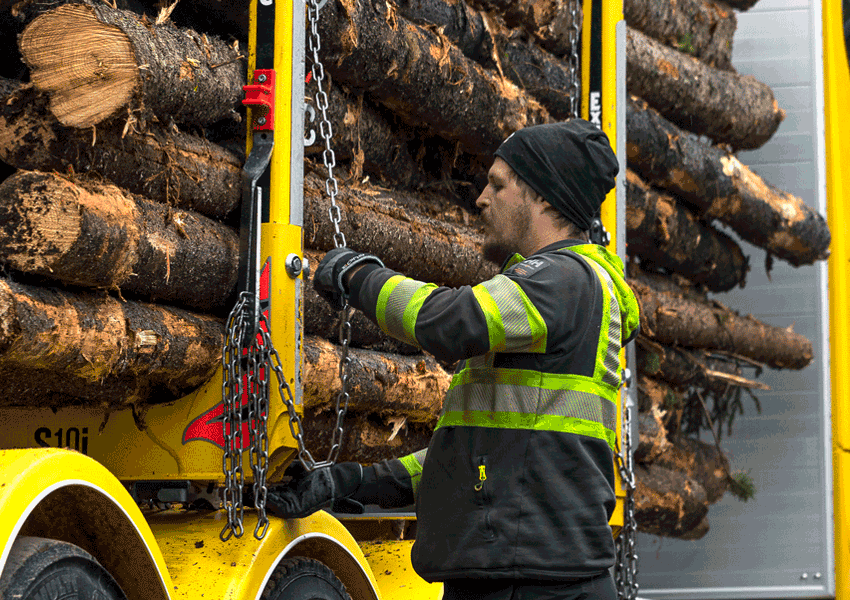

The space for bunk or frame-mounted tensioners becomes tight. It will also be difficult to fit tensioners on sliding tables. That's why we built the tensioner into the frame. The tensioning device meets international requirements and regulations, including the new Finnish requirements of 650 kg tensioning force.
Easy to service
All tensioners, whether built-in or not, require regular maintenance. The built-in tensioner S10i and S7i is designed as a compact module, which can be easily lifted out of the bolster for servicing.
Stabilizing flange
The bolster has a flange that makes the bank stand firmly. The frame is also pre-drilled for mounting various accessories.
New toothed attachment for increased safety and faster assembly
With a toothed bench frame, assembly is easier and goes faster. The risk of sliding sideways is eliminated even under heavy loads thanks to teeth in the brackets.
If you want to know more about the S10i or S7i, you are welcome to talk to one of our salespeople. Contact your salesperson via phone +46651-175 00 or email sales@exte.se
More information:
On our website www.exte.se there is more technical information and installation instructions for our timber bunks and tensioners.
Download from the website or order at telephone +46651-175 00 or email sales@exte.se
